Snappi® Pushchair Measurements

All sizes and weights are given as a guide. Tendercare Ltd reserves the right to amend specifications at any time as part of their product development program.

Snappi Size 1 With Seat Minimiser Fitted

Snappi Size 1

Snappi Size 2
Seat Depth 140-310mm 195-310mm 280-390mm
Seat Width 170-290mm 170-290mm 250-350mm
Backrest Height 475-675mm 500-675mm 590-760mm
Footrest Height 120-280mm 150-280mm 215-360mm
Seat Back Recline 90-135 degrees 90-135 degrees 90-135 degrees
Seat Tilt 0-40 degrees 0-40 degrees 0-35 degrees
Minimum - Maximum Width of Lateral Trunk Supports (if fitted) 140mm - 230mm 140mm - 230mm (standard size 1) or 200
- 280mm (size 1 wider style. Please note,
laterals can only go as wide as the seat
so at the maximum the laterals will be by the side wings)		 205mm - 325mm
Seat Plane to Floor Height (when tilt in space is at 90 degrees) 480mm 480mm 480mm
Adjustable Push Handle Range (Min - Max) 700-1100mm 700-1100mm 630-1185mm
Diameter of Front Swivelling Castor 180mm 180mm 180mm
Diameter of Rear Wheel 250mm 250mm 250mm
Seat Floor to Plane 470mm (front & back) 470mm (front & back) 465mm (front) & 470mm (back)
Weight of Pushchair 19.5kg 19kg 22kg
Weight of Seat 8kg 7.5kg 9.5kg
Weight of Chassis 11.5kg 11.5kg 12.5kg
Maximum Weight Capacity (i.e. the weight of the occupant, their accessories
e.g medical equipment and any accessories of the parent e.g. shopping)		 40kg 40kg 40kg

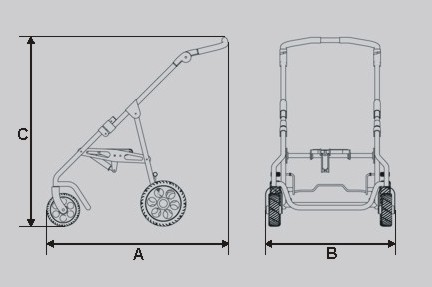

Pushchair Dimensions


N.B. The exact length of your pushchair when folded will depend upon what back height your seat is set to. We have taken the measurements both when the seat is set to its minimum and maximum back height. The size of your folded Snappi pushchair will be within this range.

Size 1

Size 2
Dim A (Length) 940mm (865mm - 920mm folded) 1030mm (930mm - 1045mm folded)
Dim B (Width) 600mm (600mm folded) 675mm (675mm folded)
Dim C (Height) 1010mm (400mm folded) 1040mm (400mm folded)


Snappi Pushchair
